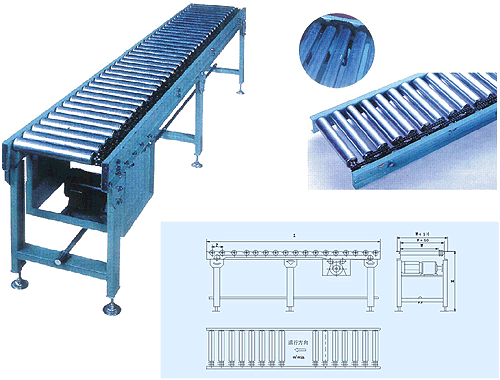

ˇ¤Double Sprocket Conveyor
| TYPE | RSSC-7630 | RSSC-8940 | RSSC-11450 |
| P (mm) | 100,150,200 | 100,150,200 | 200,300,400 |
| W (mm) | 100-1000 | 300-1500 | 300-2000 |
| L (m) | max15 | max15 | max15 |
| (kg/m) | max600 | max1000 | max1500 |
| H (mm) | min500 | min500 | min600 |
| V (M/min) | max15 | max15 | max15 |
| (Kw) | 0.55,0.75,1.1 | 0.55,0.75,1.1,1.5 | 0.55,0.75,1.1,1.5 |
| TYPE | SRC-5015 | SRC-6025 | SRC-7630 | SRC-8940 |
| P (mm) | 75,100,150 |
75,100,150 |
100,200 | 100,200,300 |
| W (mm) | 100-1000 | 100-1000 | 100-1000 | 100-2000 |
| L (m) | max5 | max8 | max8 | max8 |
| (kg/m) | max150 | max400 | max800 | max1000 |
| H (mm) | min450 | min450 | min500 | min500 |
| V (M/min) | max15 | max15 | max15 | max15 |
| (Kw) | 0.37,0.55,0.75 | 0.37,0.55,0.75 | 0.55,0.75 | 0.55,0.75 |
