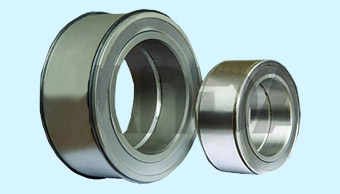

¡¤Full-Complement Cylindrical Roller Bearings For Crane Sheaves




Notes:
Bearing without snap ring. If consumer require, should be bespoken others.
Bearing has be filled with lithium lubricate lipid, sealed both sides.
If consumer require, bearing surface can process phosphating.
Average tolerance of Cf : ¡À0.2, Cf and m values of foreign companies¡¯ products may be appreciably difference. If need those values to provide products, please mark the type of that company¡¯s products.(Refer to following comparison blank)


Bearing No.
WANDA

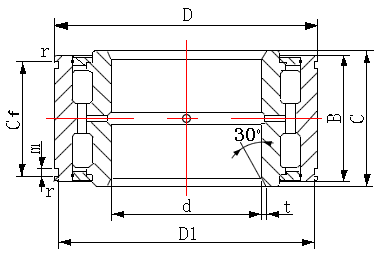

Dimensions(mm)
The Rated Load (EN)

Quality
(Eg)

d
D
B
C
t
r
D1
Cr
m
Cr
Cor
NNF5008-2ZNV 40 68 38 37 0.8 1 65.8 32.2 2.7 80 116 0.56
NNF5009-2ZNV 45 75 40 39 0.8 1 72.8 34.2 2.7 96 144 0.7
NNF5010-2ZNV 50 80 40 39 0.8 1 77.8 34.2 2.7 100 158 0.76
NNF5011-2ZNV 55 90 46 45 1 1 87.4 40..2 3.2 118 193 1.18
NNF5012-2ZNV 60 95 46 45 1 1 92.4 40.2 3.2 123 208 1.26
NNF5013-2ZNV 65 100 46 45 1 1 97.4 40.2 3.2 128 224 1.33
NNF5014-2ZNV 70 110 54 53 1 1 107.1 48.2 4.2 171 285 1.87
NNF5015-2ZNV 75 115 54 53 1 1 112.1 48.2 4.2 197 325 1.97
NNF5016-2ZNV 80 125 60 59 1 1 122.1 54.2 4.2 205 350 2.71
NNF5017-2ZNV 85 130 60 59 1 1 127.1 54.2 4.2 214 380 2.83
NNF5018-2ZNV 90 140 67 66 1.5 1 137 59.2 4.2 305 540 3.71
NNF5019-2ZNV 95 145 67 66 1.5 1 142 59.2 4.2 310 560 3.88
NNF5020-2ZNV 100 150 67 66 1.5 1 147 59.2 4.2 330 580 3.95
NNF5022-2ZNV 110 170 80 79 1.8 1.5 167 70.2 4.2 385 695 6.57
NNF5024-2ZNV 120 180 80 79 1.8 1.5 176 71.2 4.2 400 750 7.04
NNF5026-2ZNV 130 200 95 94 1.8 1.5 196 83.2 4.2 535 1000 10.8
NNF5028-2ZNV 140 210 95 94 1.8 1.5 206 83.2 5.2 600 1120 11.1
NNF5030-2ZNV 150 225 100 99 2 1.5 221 87.2 5.2 690 1290 13.3
NNF5032-2ZNV 160 240 109 108 2 2 236 95.2 5.2 720 1390 16.6
NNF5034-2ZNV 170 260 122 121 2 2 254 107.2 5.2 925 1790 22.6
NNF5036-2ZNV 180 280 136 135 2 2 274 118.2 5.2 1090 2140 30.1
NNF5038-2ZNV 190 290 136 135 2 2 284 118.2 5.2 1100 2200 31.5
NNF5040-2ZNV 200 310 150 149 2 2 304 128.2 6.3 1300 2600 40.8
NNF5044-2ZNV 220 340 160 159 2.5 2 334 138.2 6.3 1570 3050 52.5
NNF5048-2ZNV 240 360 160 159 2.5 2 354 138.2 6.3 1630 3300 56
NNF5052-2ZNV 260 400 190 189 3 2.5 394 162.2 6.3 2380 4700 84.5
NNF5056-2ZNV 280 420 190 189 3 2.5 413 163.2 7.3 2600 5200 90
NNF5060-2ZNV 300 460 218 216 3 2.5 453 185.2 7.3 3000 5800 126

WANDA
NTN
INA
SKF
FAG
NSK
NNF5008-2ZNV SL04-5008NR SL04-5008pp NNF5008ADA-2LSV NNF5008B ¡ñ 2L ¡ñ SV RS5008NR
NNF5009-2ZNV SL04-5009NR SL04-5009pp NNF5009ADA-2LSV NNF5009B ¡ñ 2L ¡ñ SV RS5009NR
NNF5010-2ZNV SL04-5010NR SL04-5010pp NNF5010ADA-2LSV NNF5010B ¡ñ 2L ¡ñ SV RS5010NR
NNF5011-2ZNV SL04-5011NR SL04-5011pp NNF5011ADA-2LSV NNF5011B ¡ñ 2L ¡ñ SV RS5011NR
NNF5012-2ZNV SL04-5012NR SL04-5012pp NNF5012ADA-2LSV NNF5012B ¡ñ 2L ¡ñ SV RS5012NR
NNF5013-2ZNV SL04-5013NR SL04-5013pp NNF5013ADA-2LSV NNF5013B ¡ñ 2L ¡ñ SV RS5013NR
NNF5014-2ZNV SL04-5014NR SL04-5014pp NNF5014ADA-2LSV NNF5014B ¡ñ 2L ¡ñ SV RS5014NR
NNF5015-2ZNV SL04-5015NR SL04-5015pp NNF5015ADA-2LSV NNF5015B ¡ñ 2L ¡ñ SV RS5015NR
NNF5016-2ZNV SL04-5016NR SL04-5016pp NNF5016ADA-2LSV NNF5016B ¡ñ 2L ¡ñ SV RS5016NR
NNF5017-2ZNV SL04-5017NR SL04-5017pp NNF5017ADA-2LSV --------- RS5017NR
NNF5018-2ZNV SL04-5018NR SL04-5018pp NNF5018ADA-2LSV NNF5018B ¡ñ 2L ¡ñ SV RS5018NR
NNF5019-2ZNV SL04-5019NR SL04-5019pp NNF5019ADA-2LSV --------- RS5019NR
NNF5020-2ZNV SL04-5020NR SL04-5020pp NNF5020ADA-2LSV NNF5020B ¡ñ 2L ¡ñ SV RS5020NR
NNF5022-2ZNV SL04-5022NR SL04-5022pp NNF5022ADA-2LSV NNF5022B ¡ñ 2L ¡ñ SV RS5022NR
NNF5024-2ZNV SL04-5024NR SL04-5024pp NNF5024ADA-2LSV NNF5024B ¡ñ 2L ¡ñ SV RS5024NR
NNF5026-2ZNV SL04-5026NR SL04-5026pp NNF5026ADA-2LSV NNF5026B ¡ñ 2L ¡ñ SV RS5026NR
NNF5028-2ZNV SL04-5028NR SL04-5028pp NNF5028ADA-2LSV NNF5028B ¡ñ 2L ¡ñ SV RS5028NR
NNF5030-2ZNV SL04-5030NR SL04-5030pp NNF5030ADA-2LSV NNF5030B ¡ñ 2L ¡ñ SV RS5030NR
NNF5032-2ZNV SL04-5032NR SL04-5032pp NNF5032ADA-2LSV NNF5032B ¡ñ 2L ¡ñ SV RS5032NR
NNF5034-2ZNV SL04-5034NR SL04-5034pp NNF5034ADA-2LSV NNF5034B ¡ñ 2L ¡ñ SV RS5034NR
NNF5036-2ZNV SL04-5036NR SL04-5036pp NNF5036ADA-2LSV NNF5036B ¡ñ 2L ¡ñ SV RS5036NR
NNF5038-2ZNV SL04-5038NR SL04-5038pp NNF5038ADA-2LSV -------- RS5038NR
NNF5040-2ZNV SL04-5040NR SL04-5040pp NNF5040ADA-2LSV ------- RS5040NR
NNF5044-2ZNV SL04-5044NR SL04-5044pp NNF5044ADA-2LSV ------- RS5044NR
NNF5048-2ZNV SL04-5048NR SL04-5048pp NNF5048ADA-2LSV ------- RS5048NR
NNF5052-2ZNV SL04-5052NR SL04-5052pp ------- ------- RS5052NR
NNF5056-2ZNV SL04-5056NR SL04-5056pp ------- ------- RS5056NR
NNF5060-2ZNV SL04-5060NR SL04-5060pp ------- ------- RS5060NR
